100T Roadheader
Overview
About this machine
The 100T Roadheader is the 100-ton mega-scale GTA50 model — the largest in the range — for underground tunnel and mining operations. See the specification table for ratings, then contact GTA50 or browse other roadheader machines.
Specifications
Key data
Working Weight
100,000 KG
Length
12.60 meters
Cutting Head Electric Motor
250 kW
Cross Section Area
6.70 – 6.50 meters
Technical Table
Full specification
| Property | Value |
|---|---|
| Working Weight | 100,000 KG |
| Length | 12.60 meters |
| Width | 3.30 meters |
| Height | 3.35 meters |
| Crawler Working Weight | 100 tons |
| Hydraulic System | Variable Displacement Load Sensing Pump |
| Cutting Head Electric Motor | 250 kW |
| Hydraulic System Electric Motor | 200 kW |

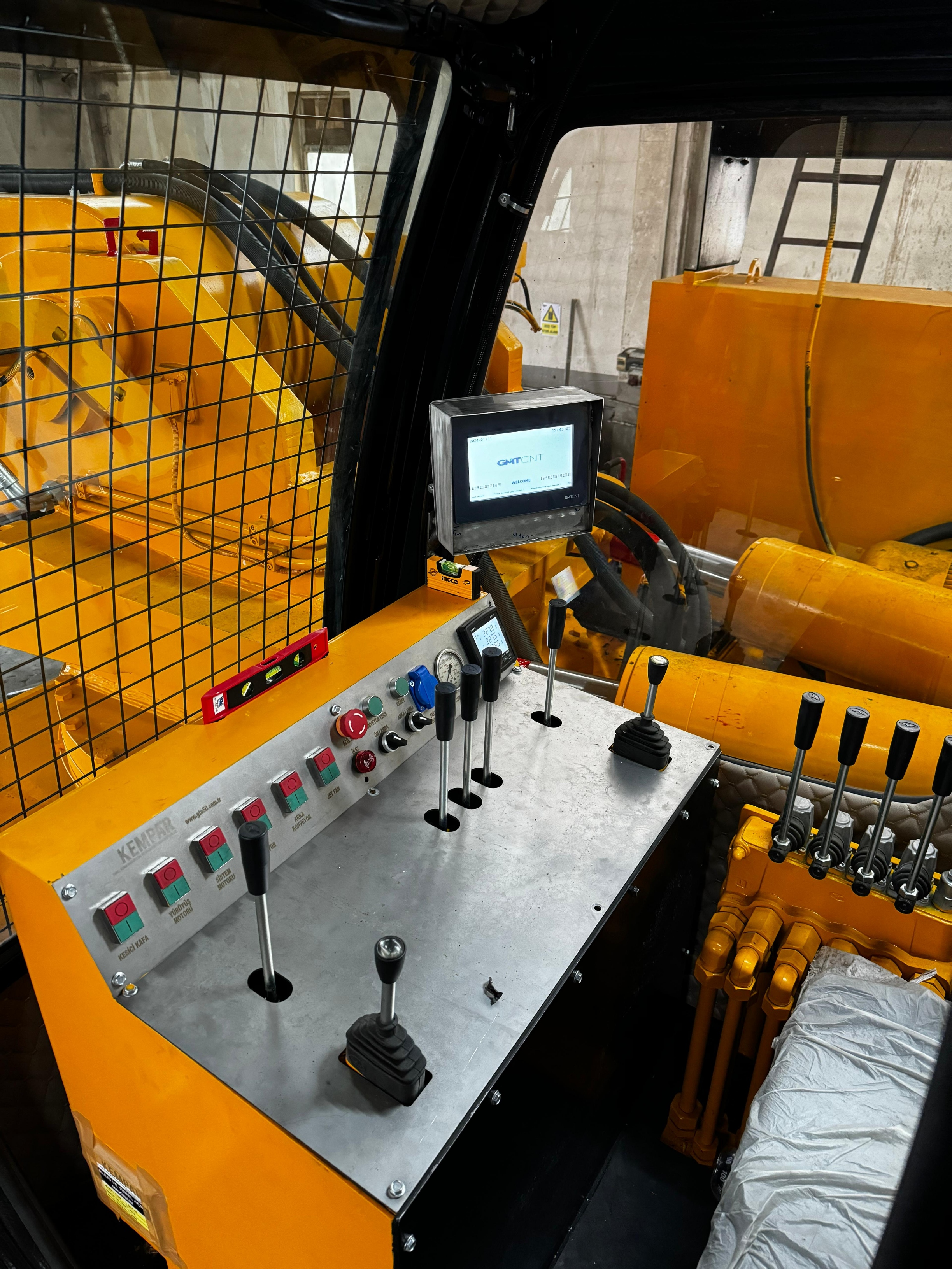

| Control Joysticks | Joystick |
| Cross Section Area | 6.70 – 6.50 meters |

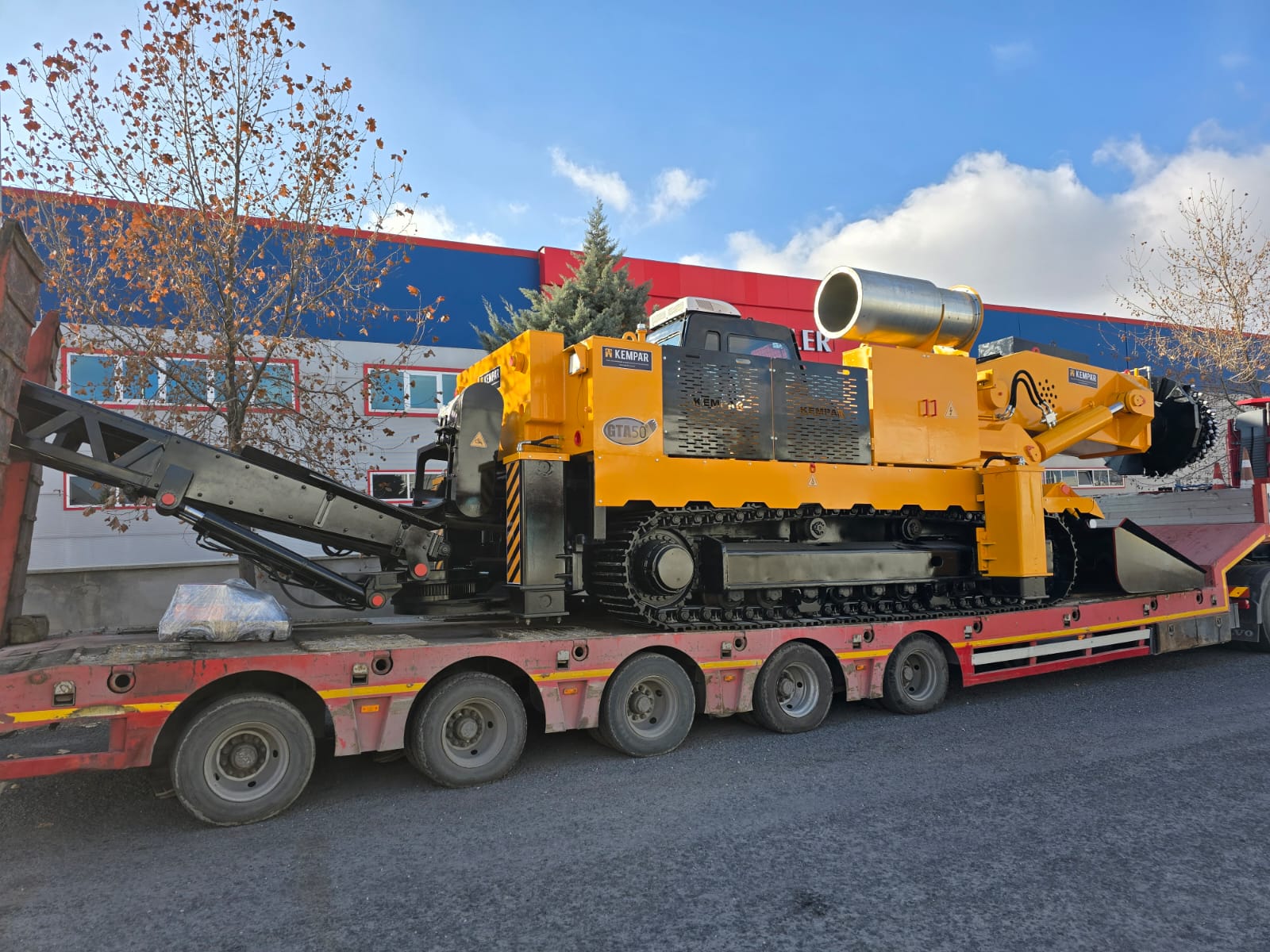

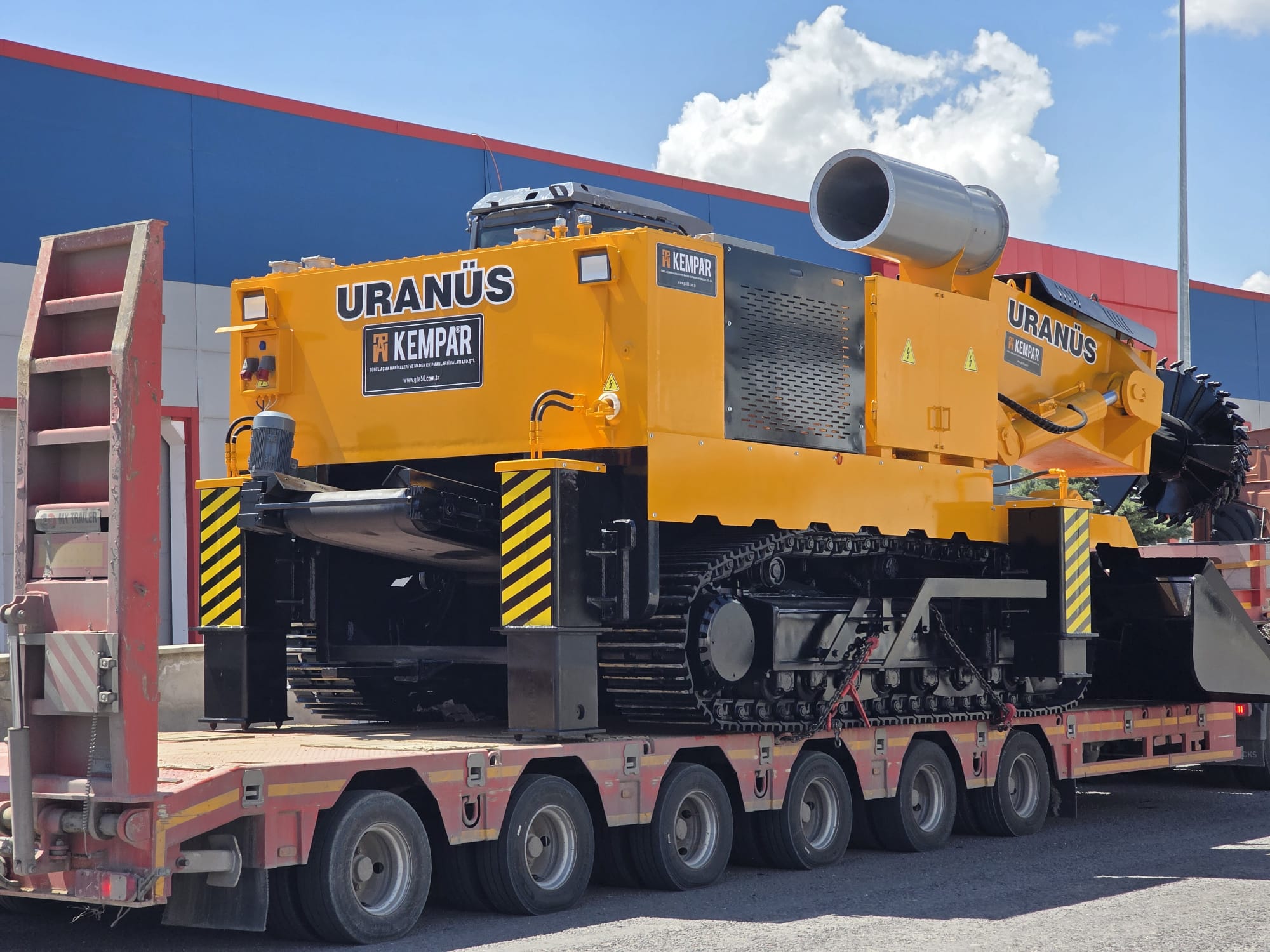

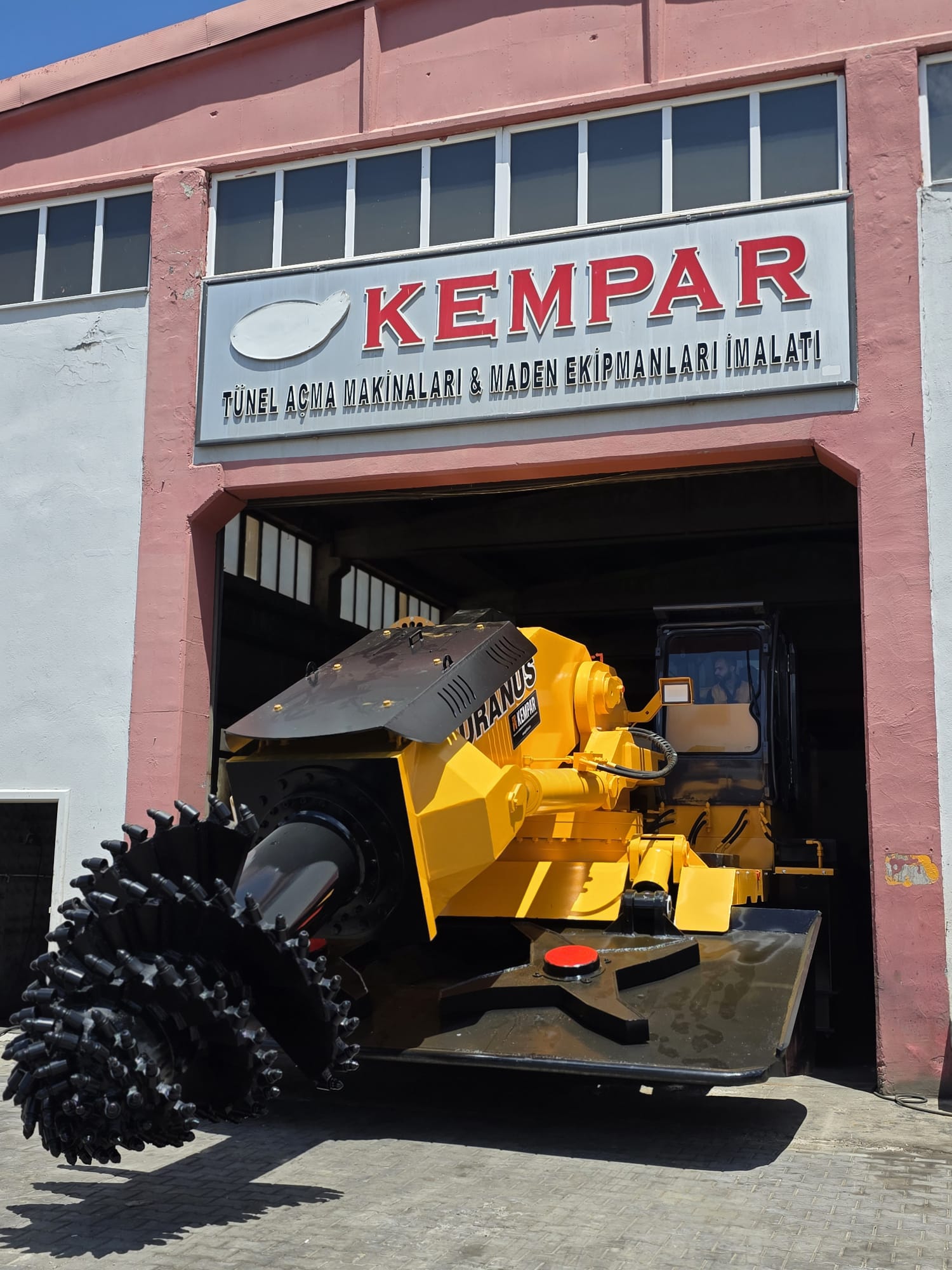

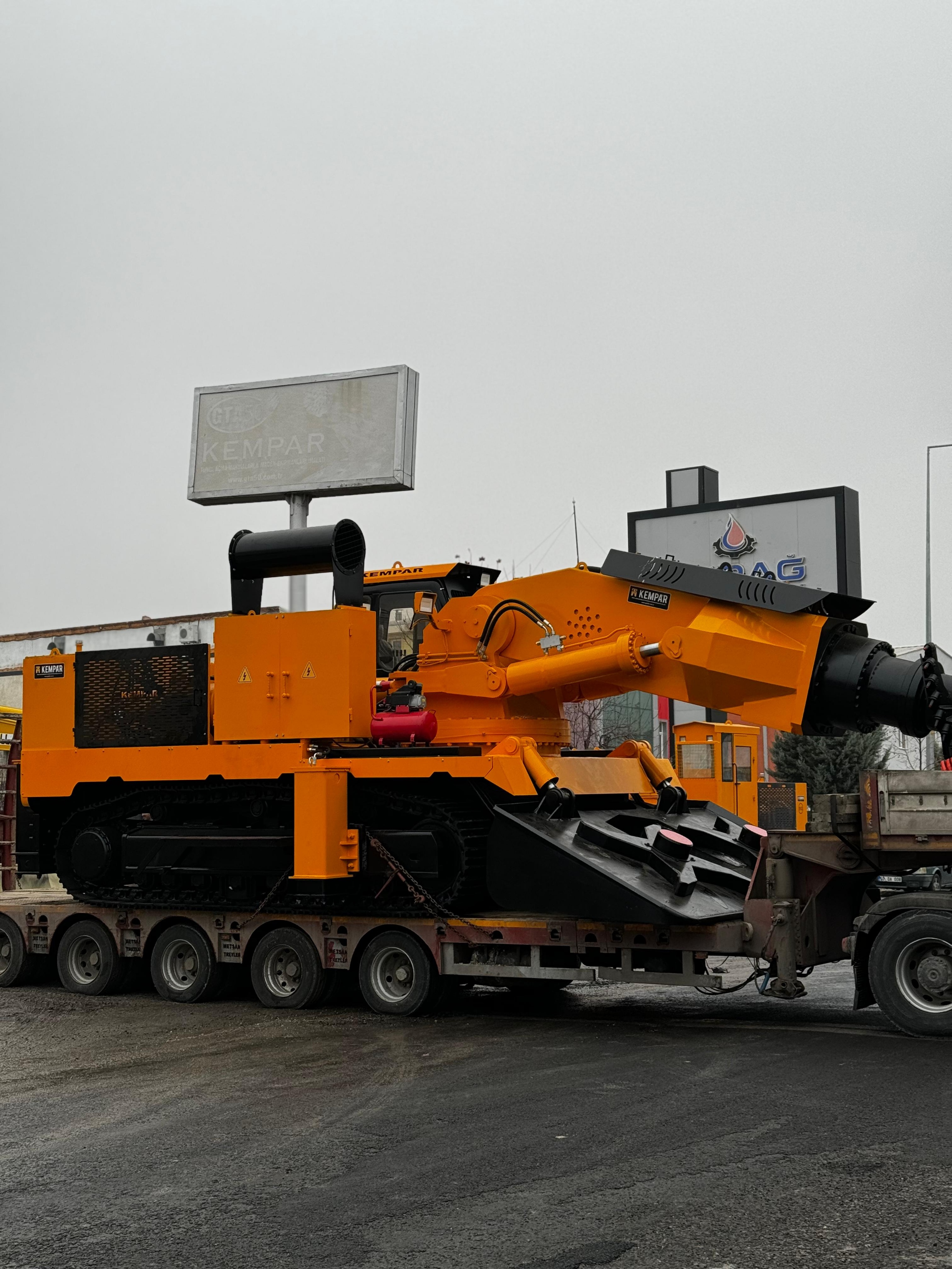

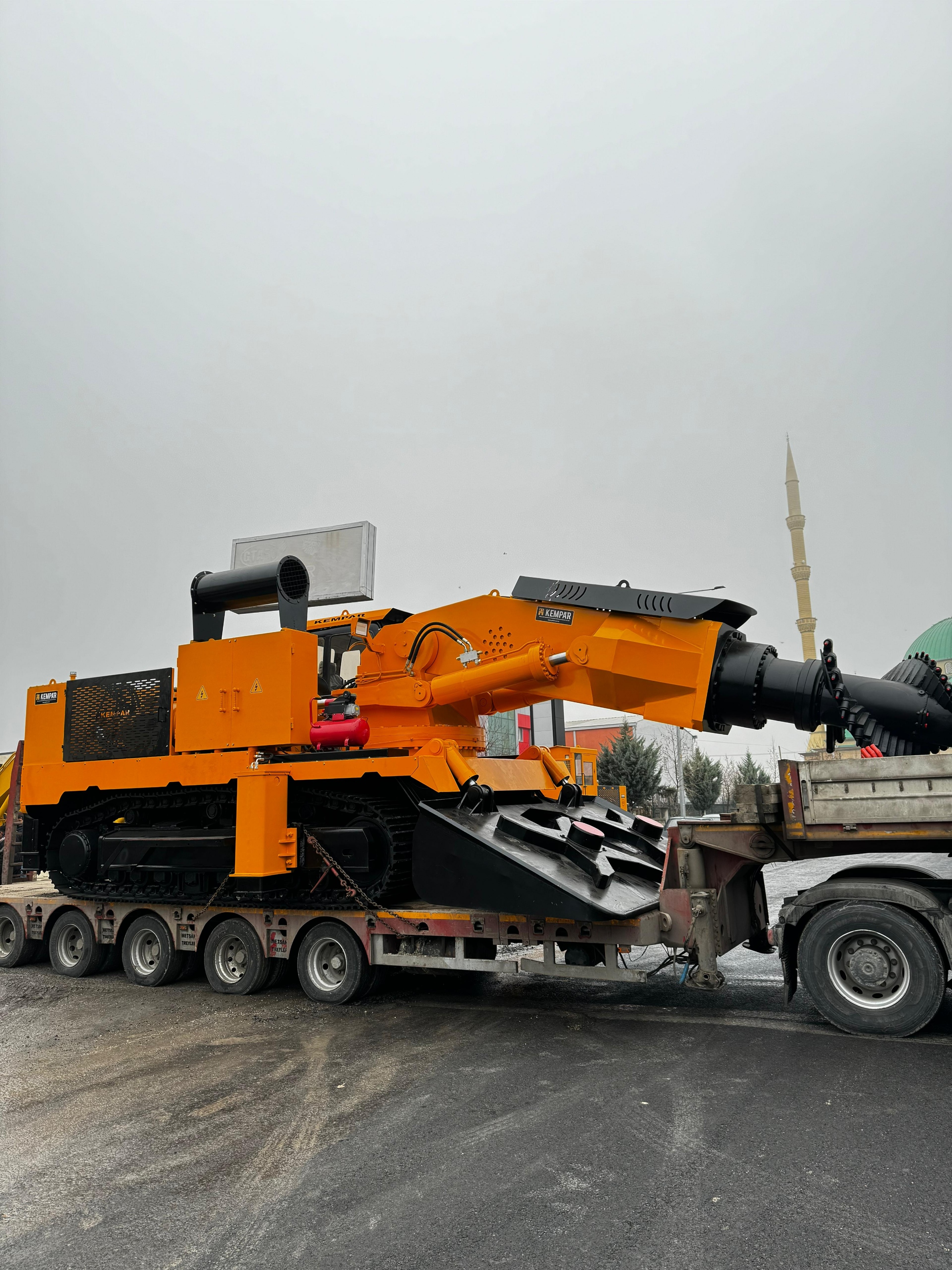

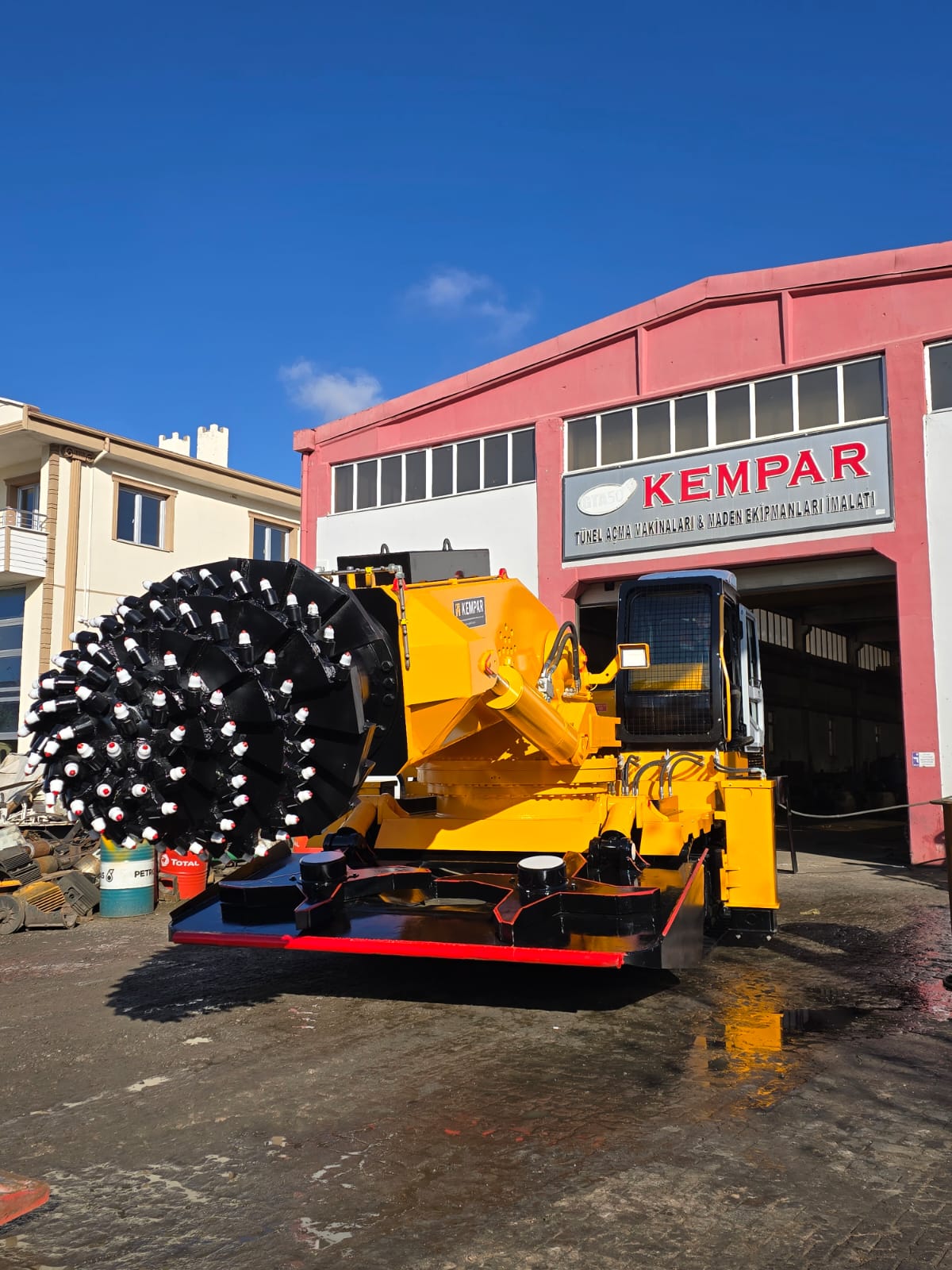

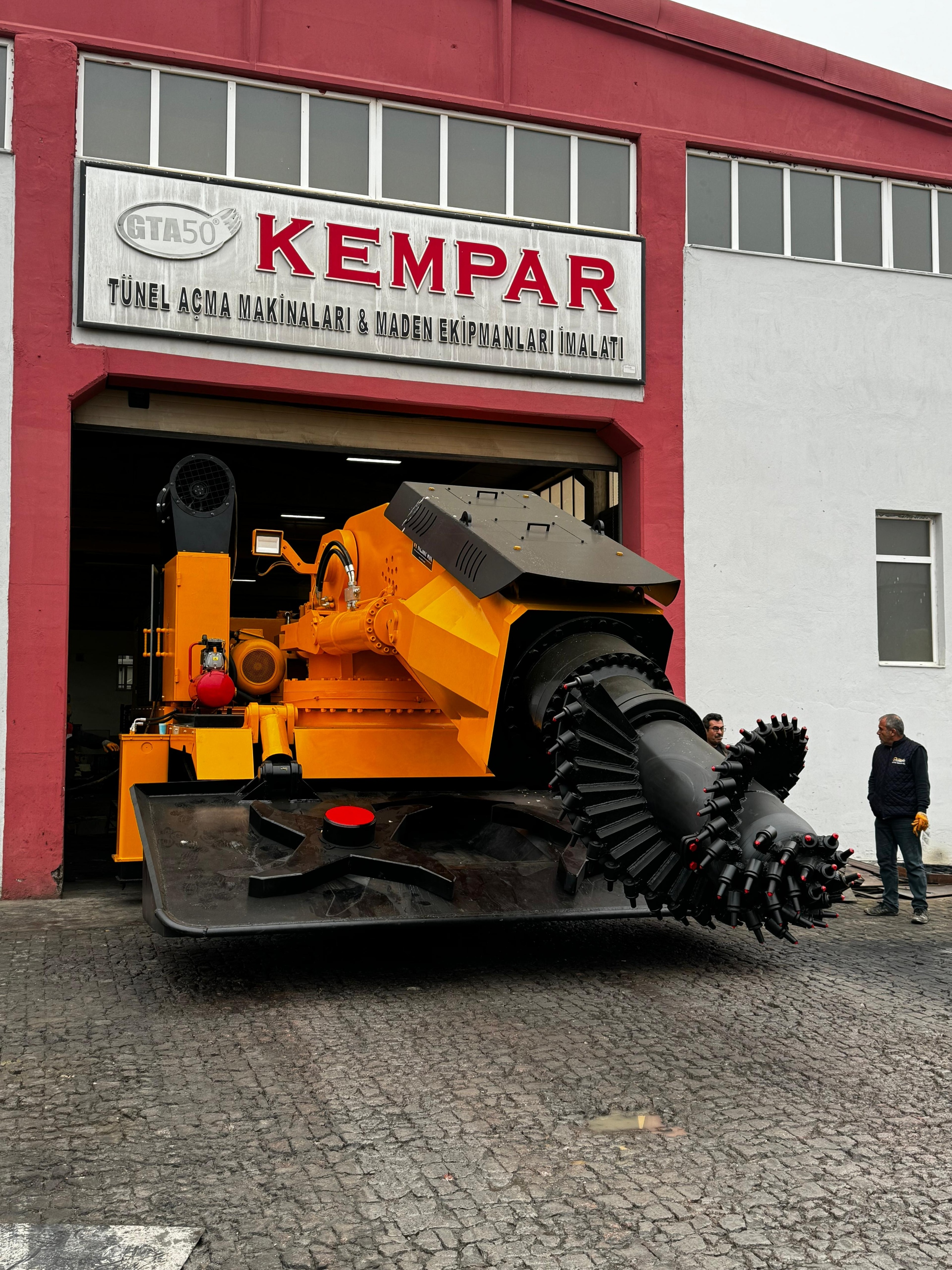

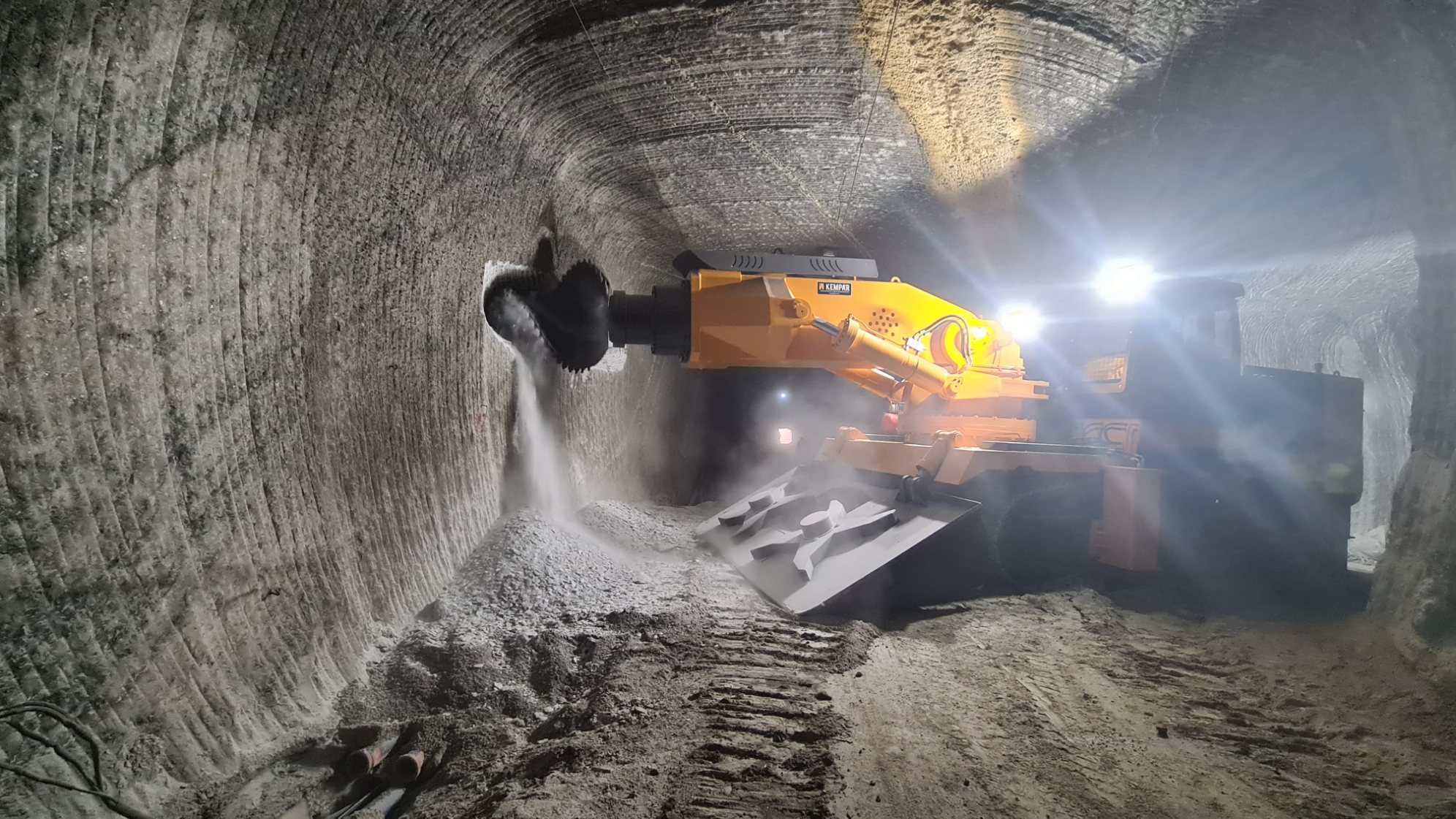

3D Gallery
Multi-angle view
1 / 9
Videos
Field videos
100T Roadheader
Move forward with this machine
Let’s define the right configuration together.
