80T Roadheader
Overview
About this machine
The 80T Roadheader is an 80-ton mega-scale machine for underground tunnel and mining operations. Specifications are in the table on this page. Contact GTA50 to discuss the 80T or adjacent models in the range.
Specifications
Key data
Working Weight
80,000 KG
Length
12.60 meters
Cutting Head Electric Motor
250 kW
Cross Section Area
6.50 – 6.10 meters
Technical Table
Full specification
| Property | Value |
|---|---|
| Working Weight | 80,000 KG |
| Length | 12.60 meters |
| Width | 3.30 meters |
| Height | 3.15 meters |
| Crawler Working Weight | 80 tons |
| Hydraulic System | Variable Displacement Load Sensing Pump |
| Cutting Head Electric Motor | 250 kW |
| Hydraulic System Electric Motor | 110 kW |
| Control Joysticks | Joystick |
| Cross Section Area | 6.50 – 6.10 meters |

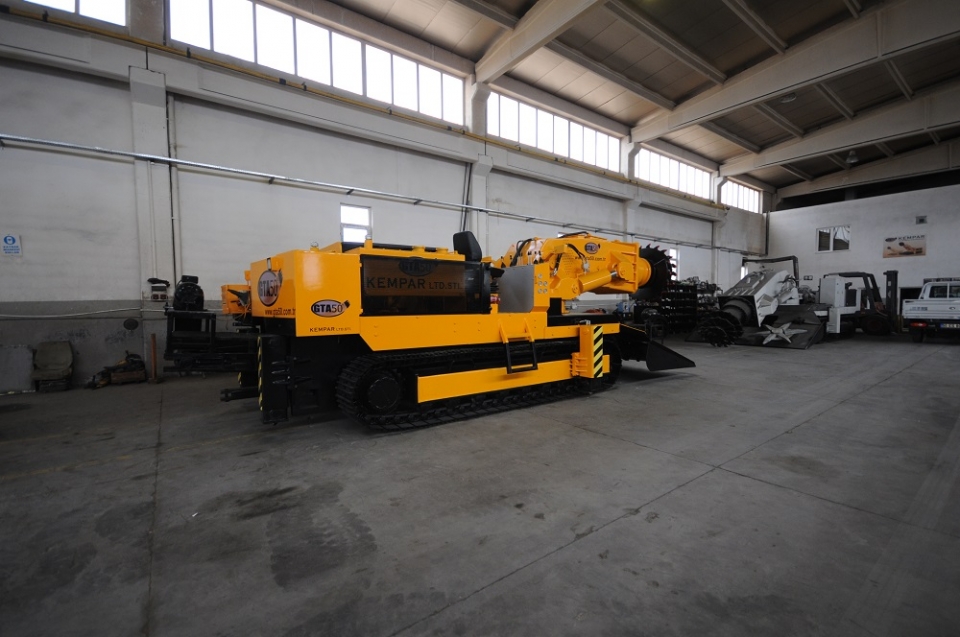

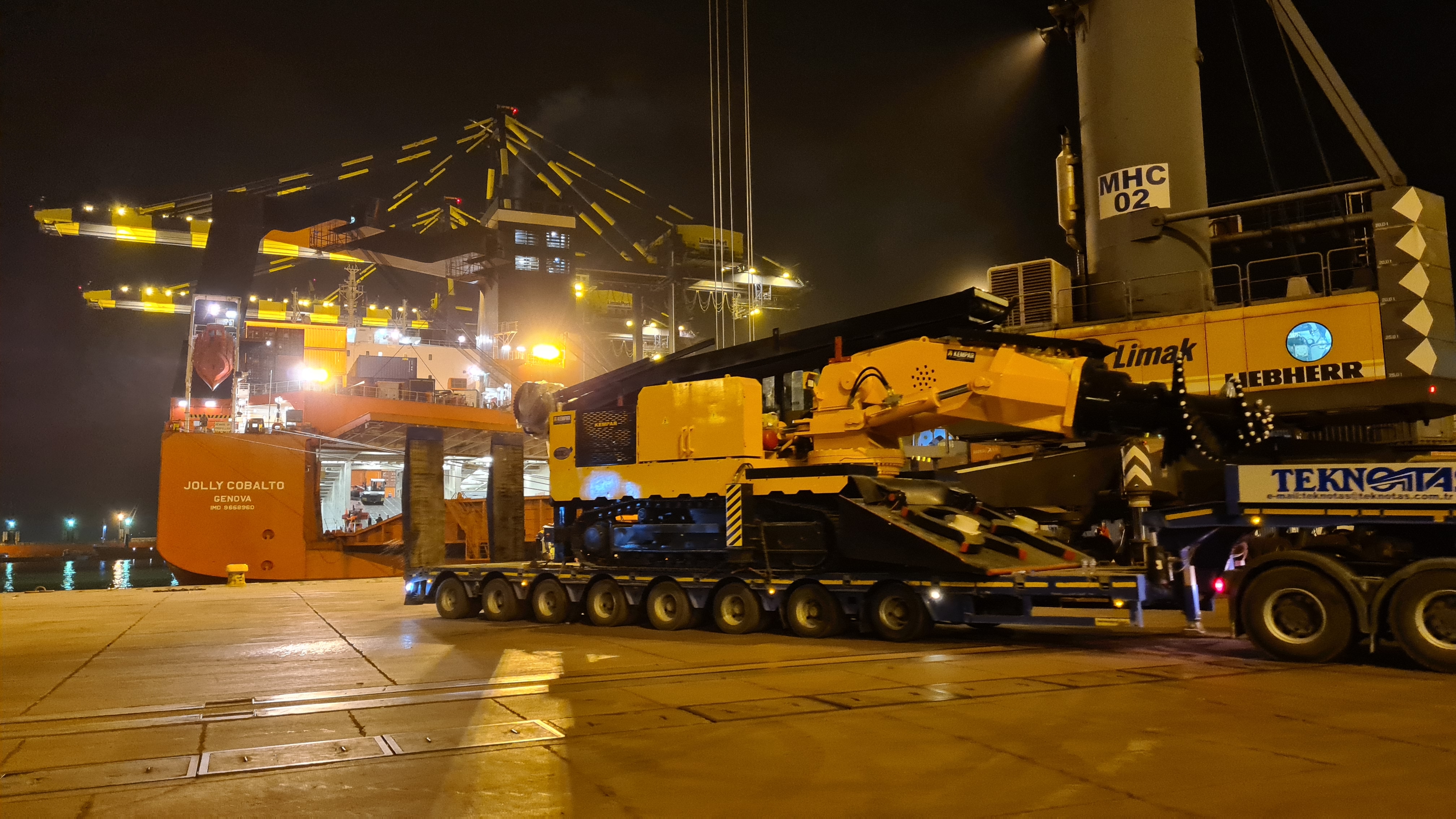

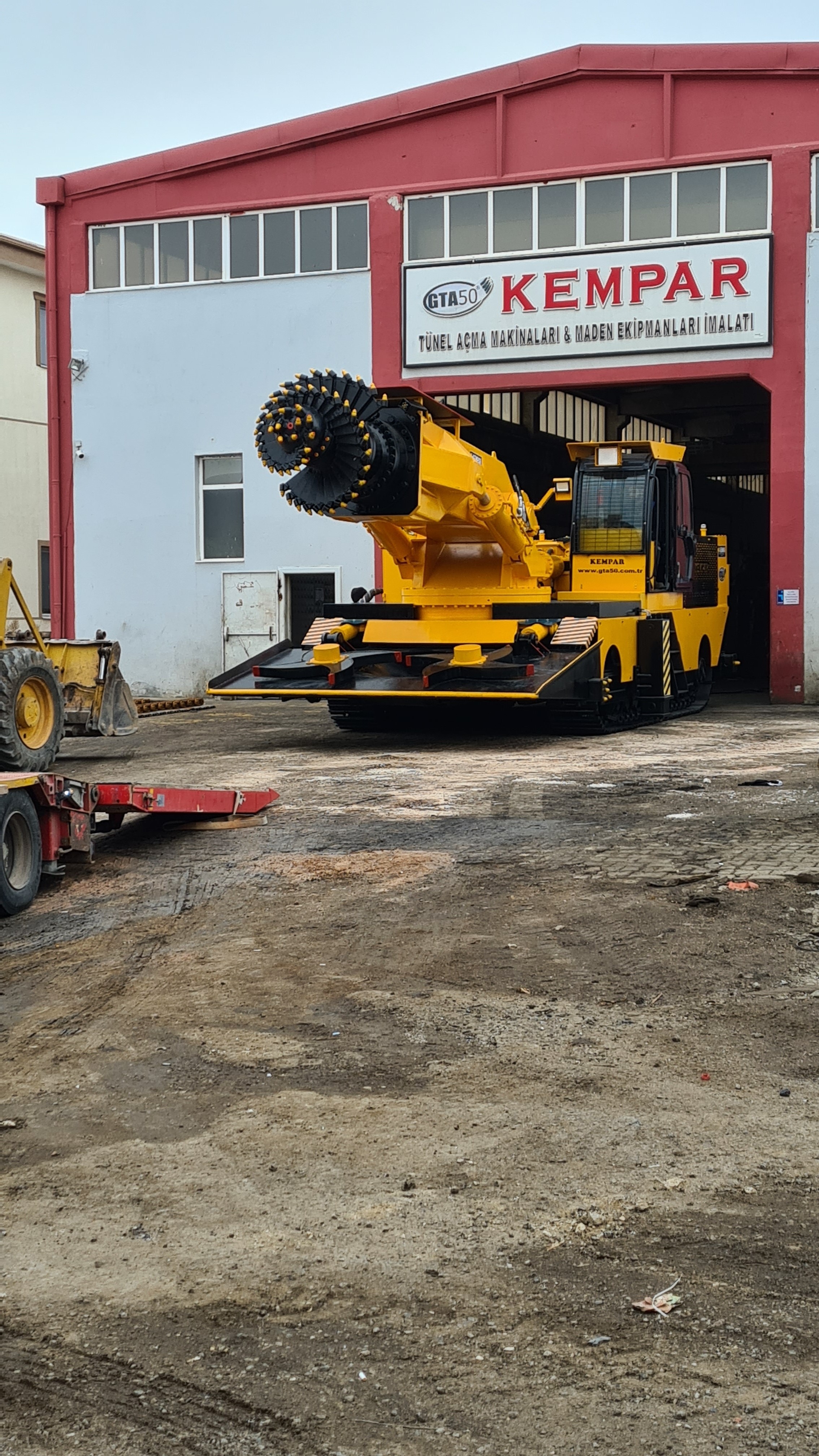

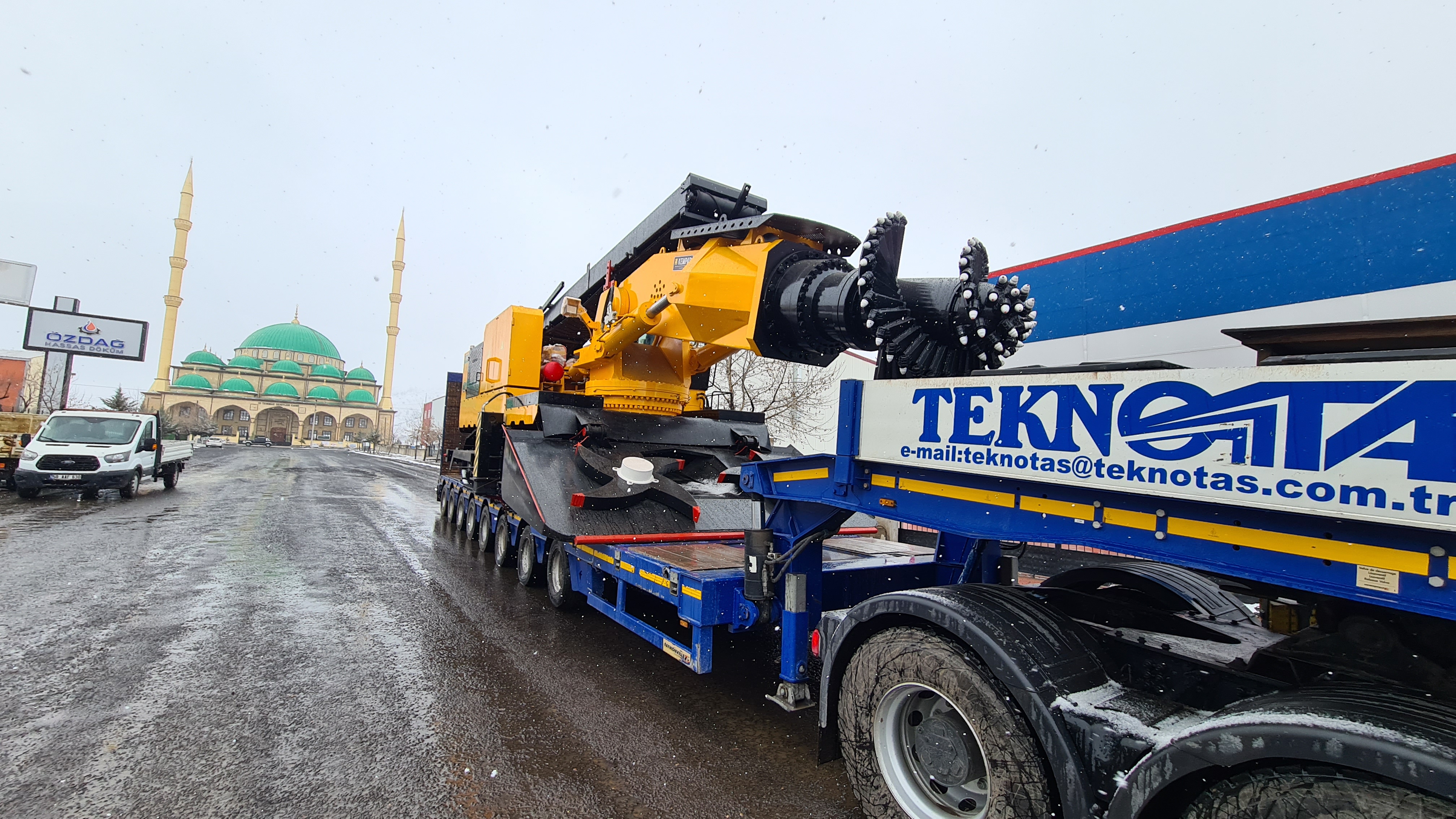

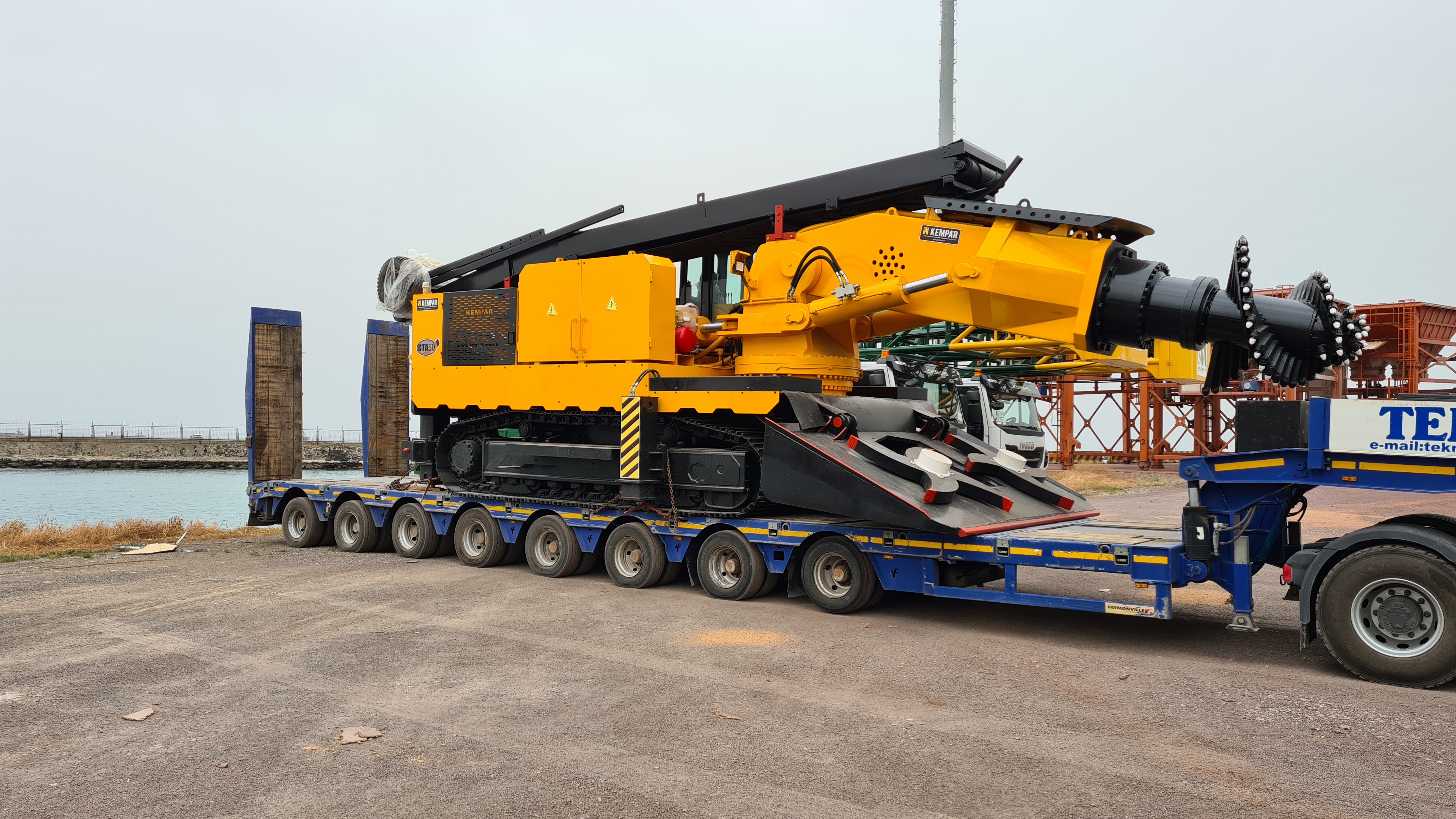

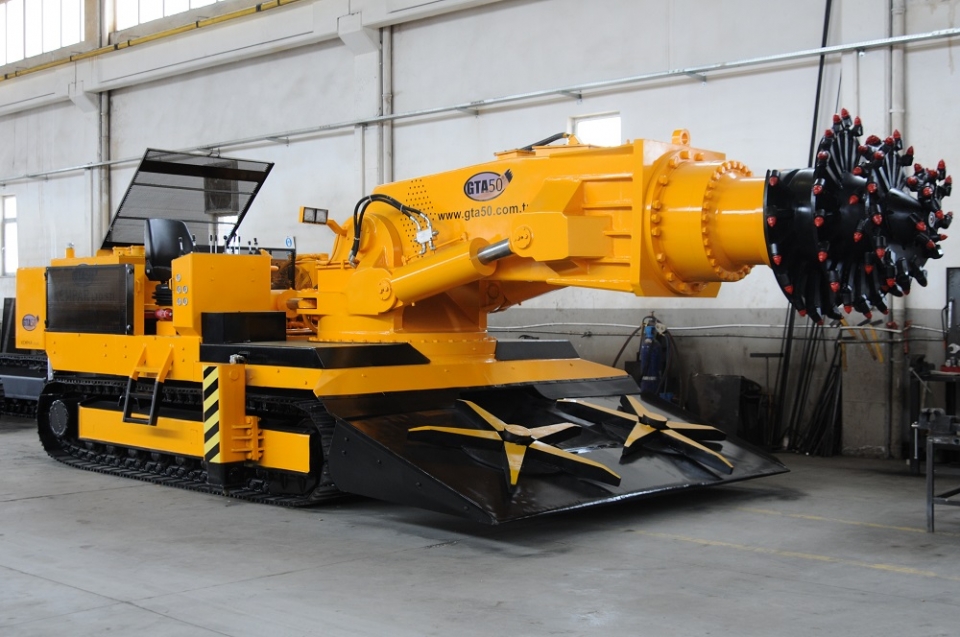

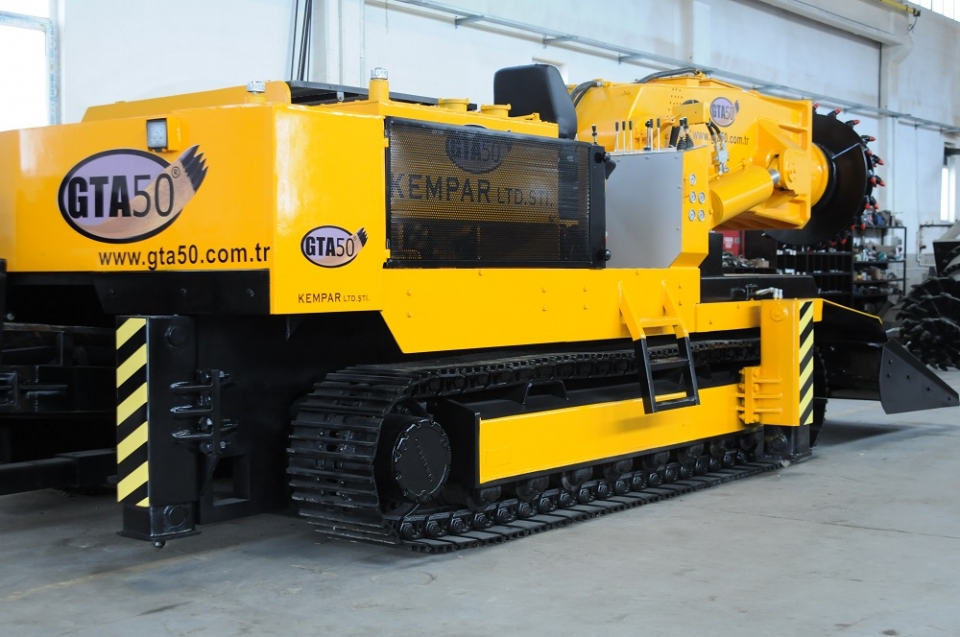

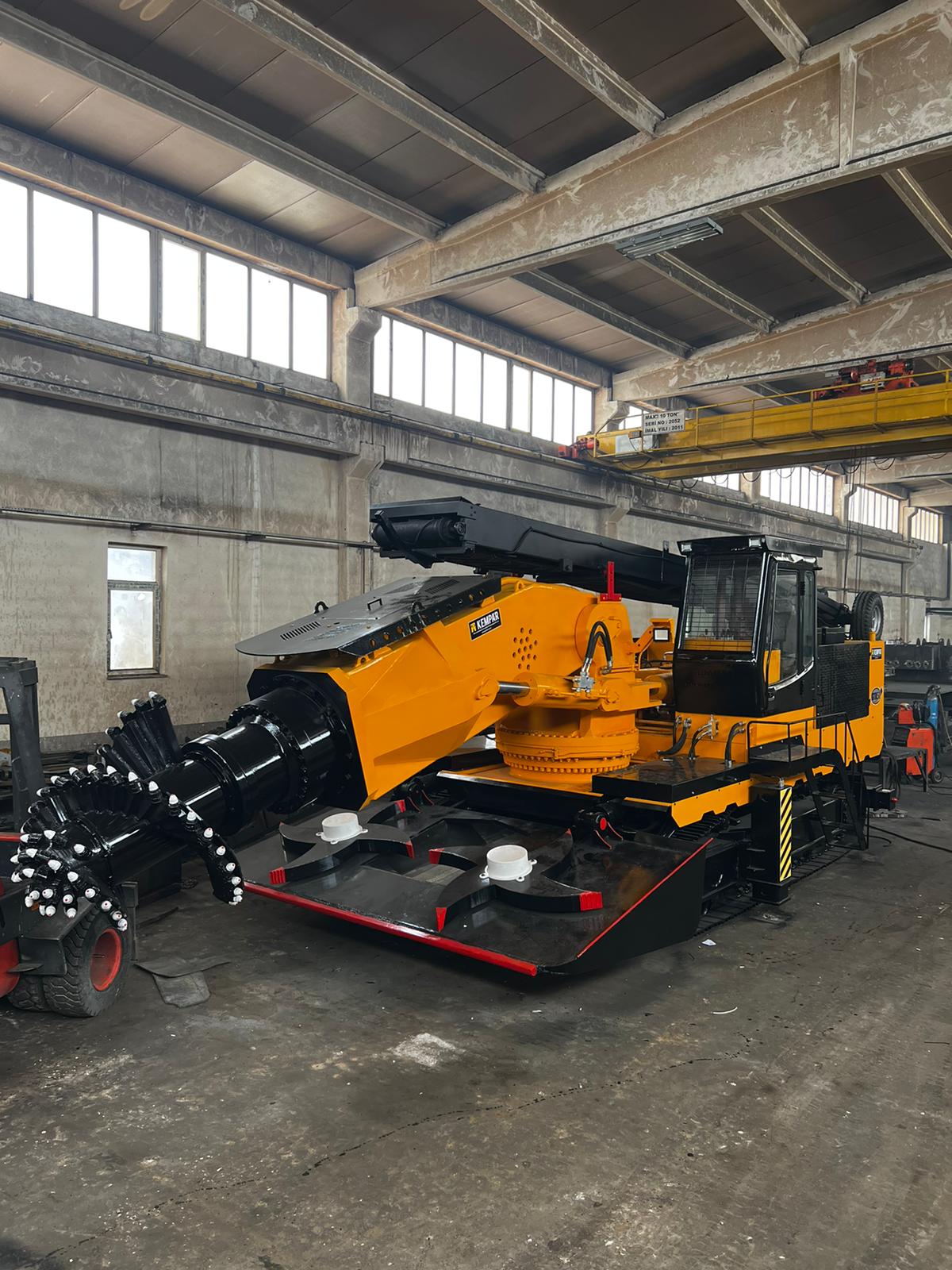

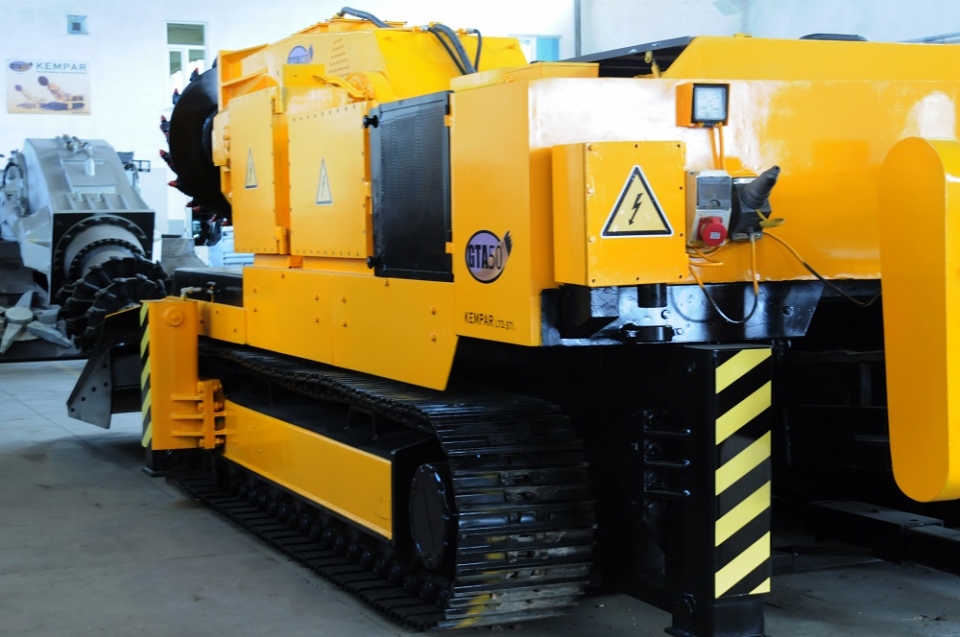

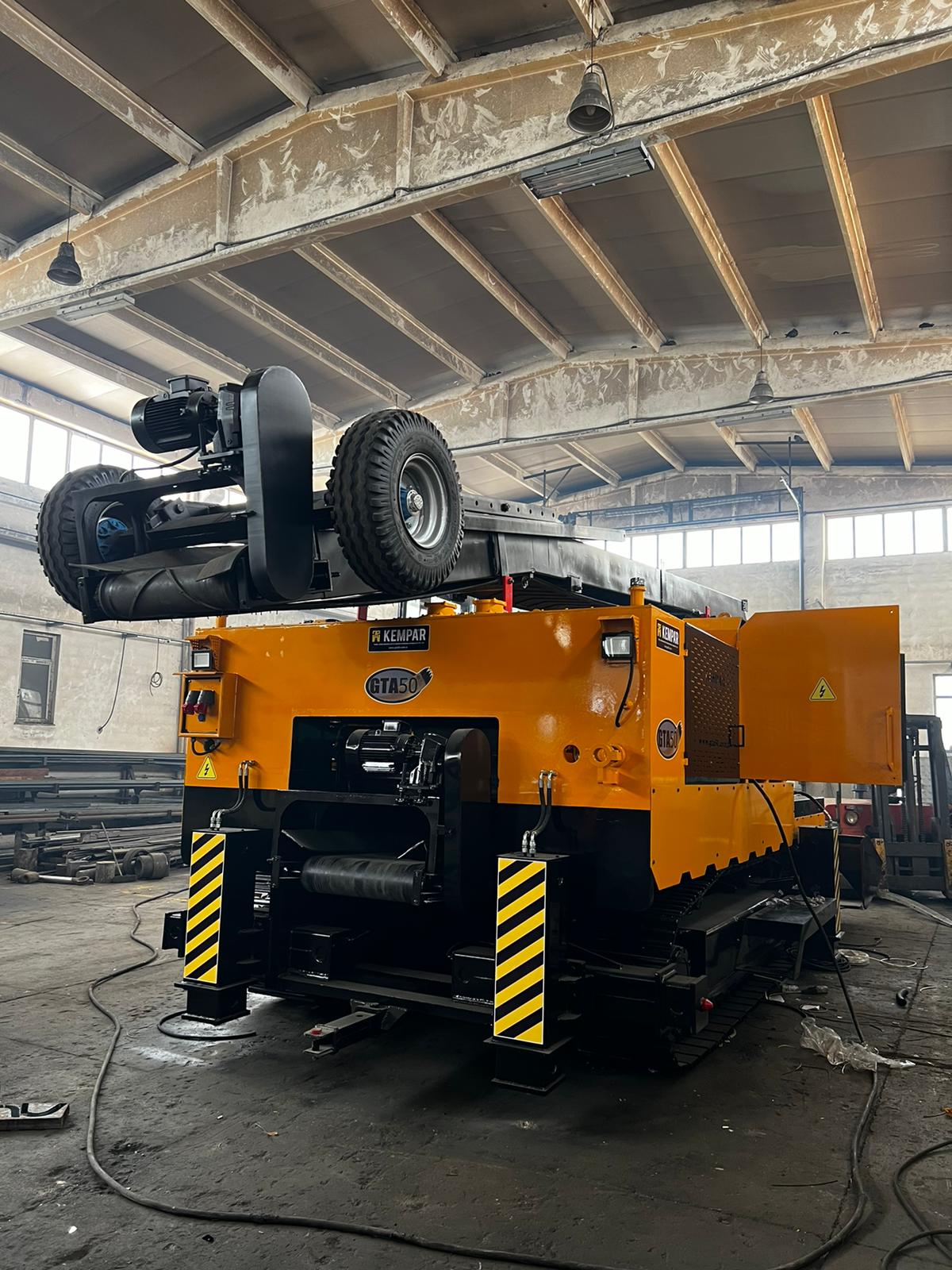

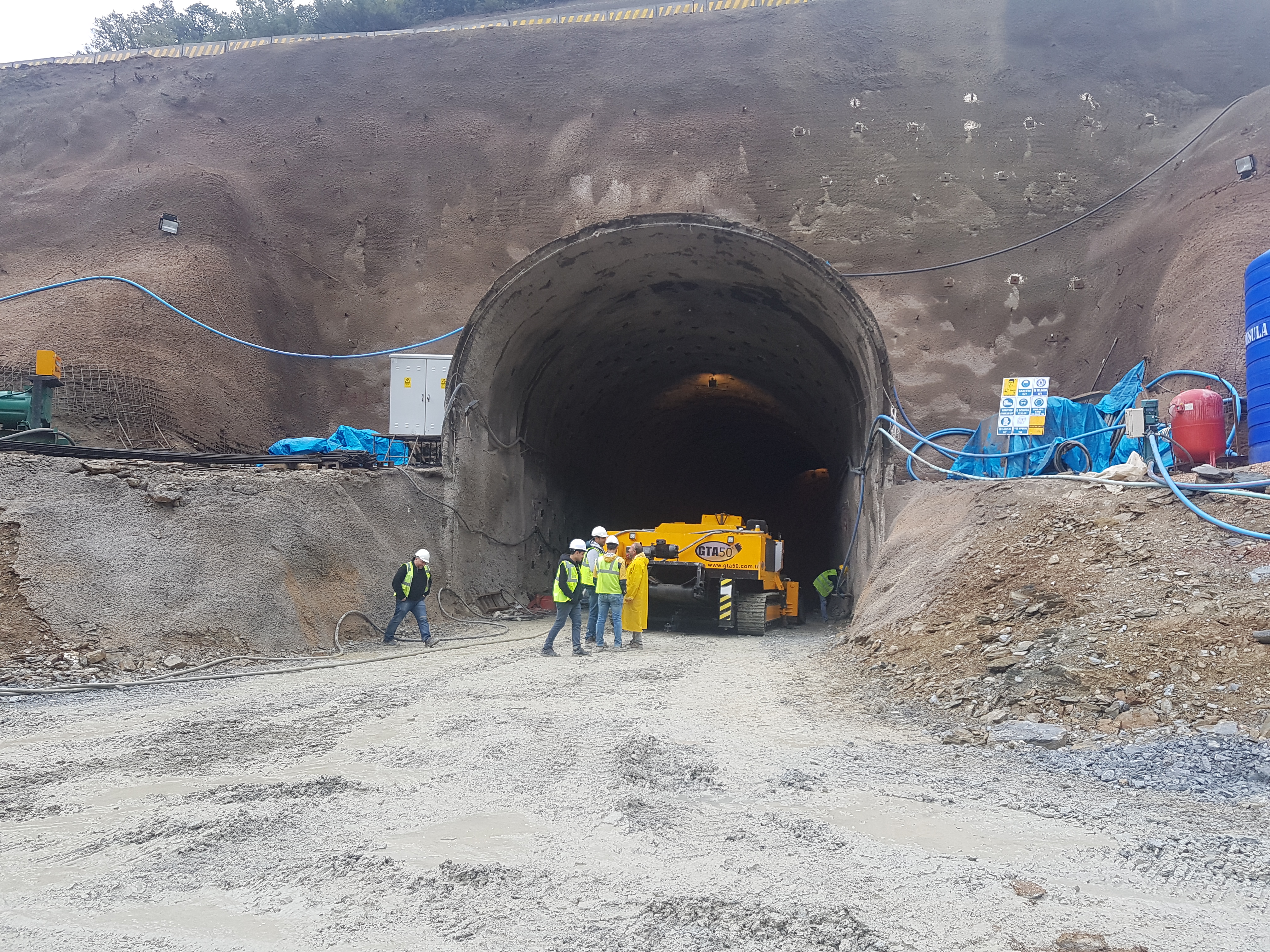

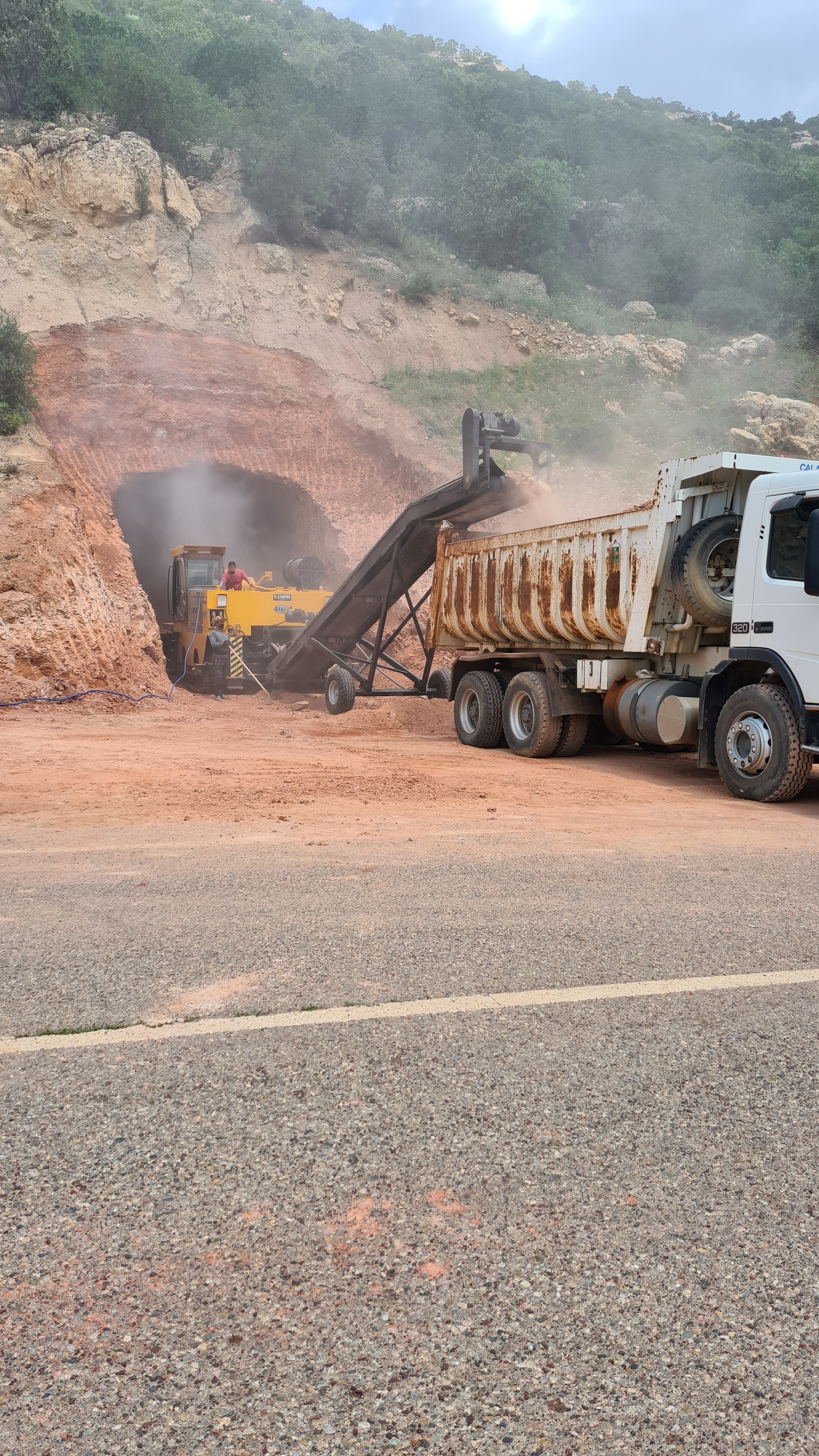

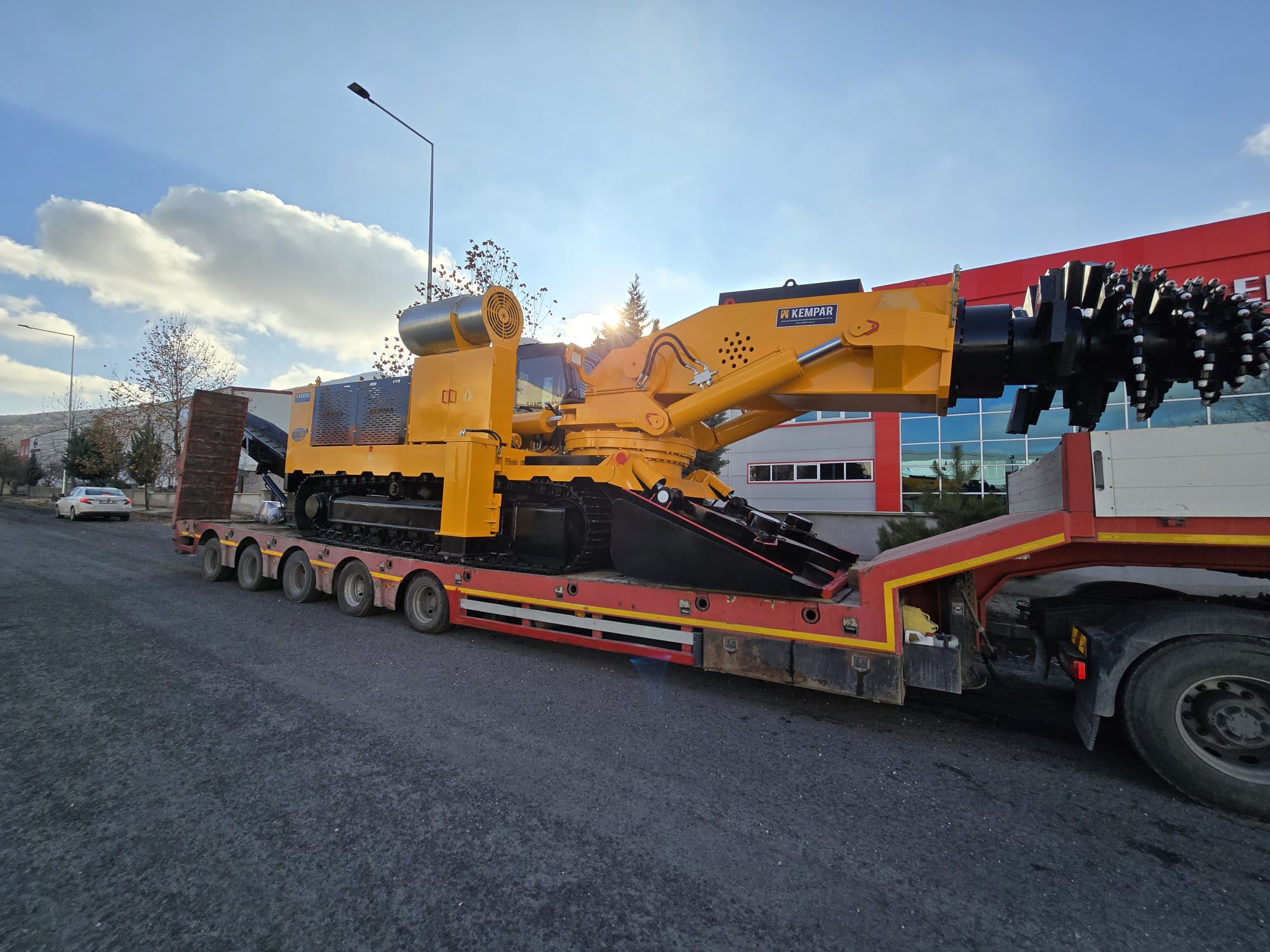

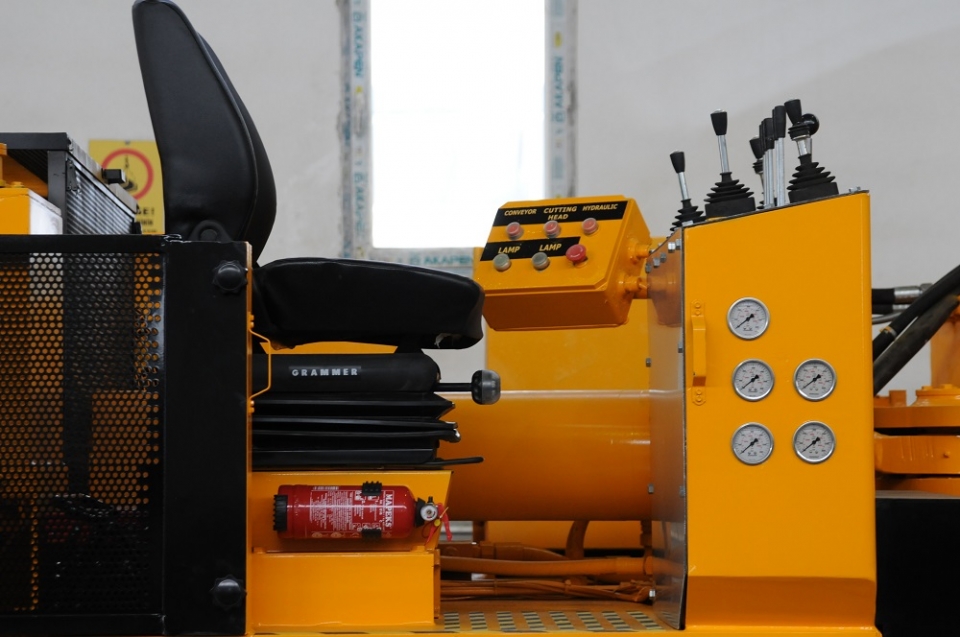

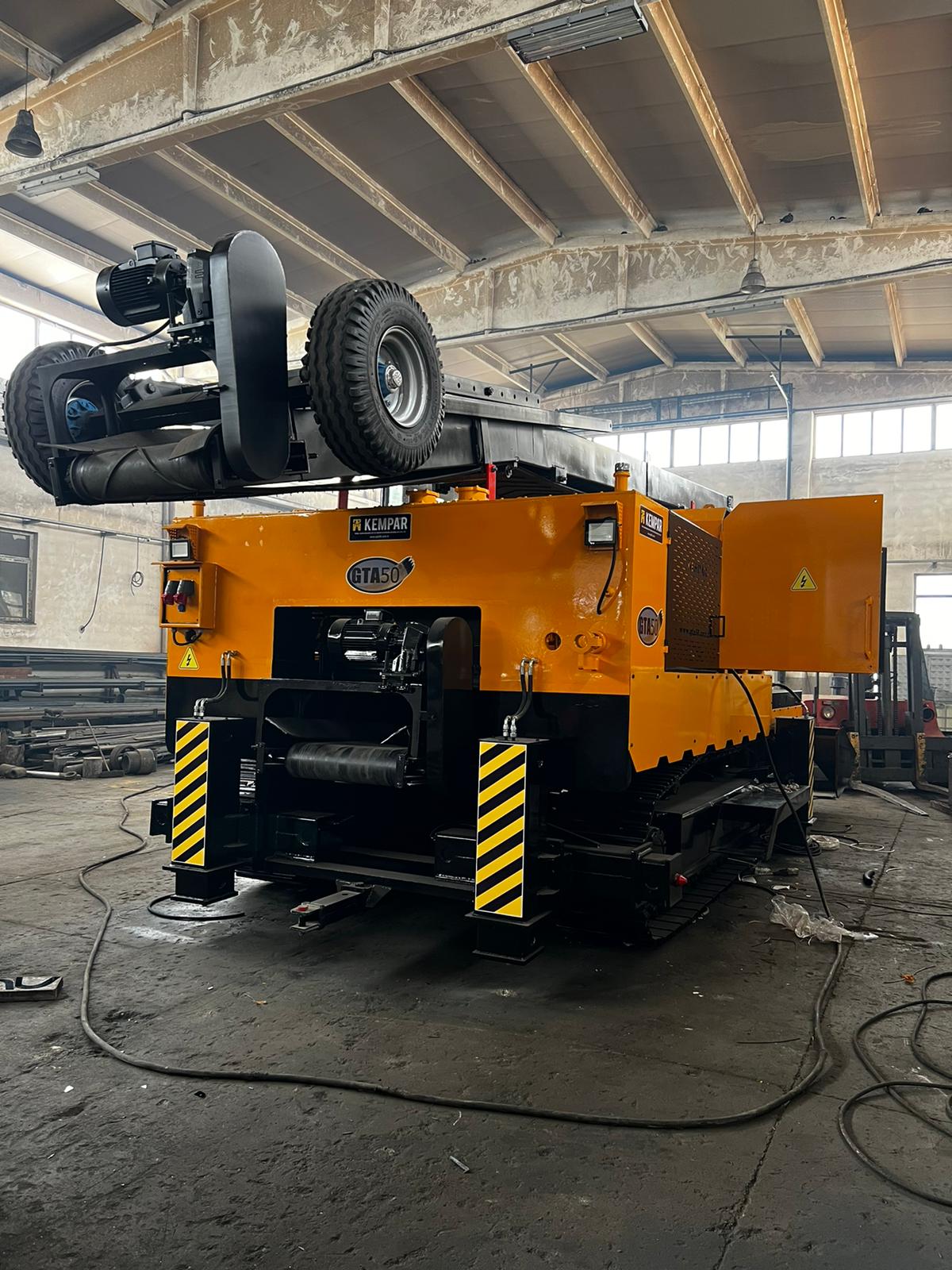

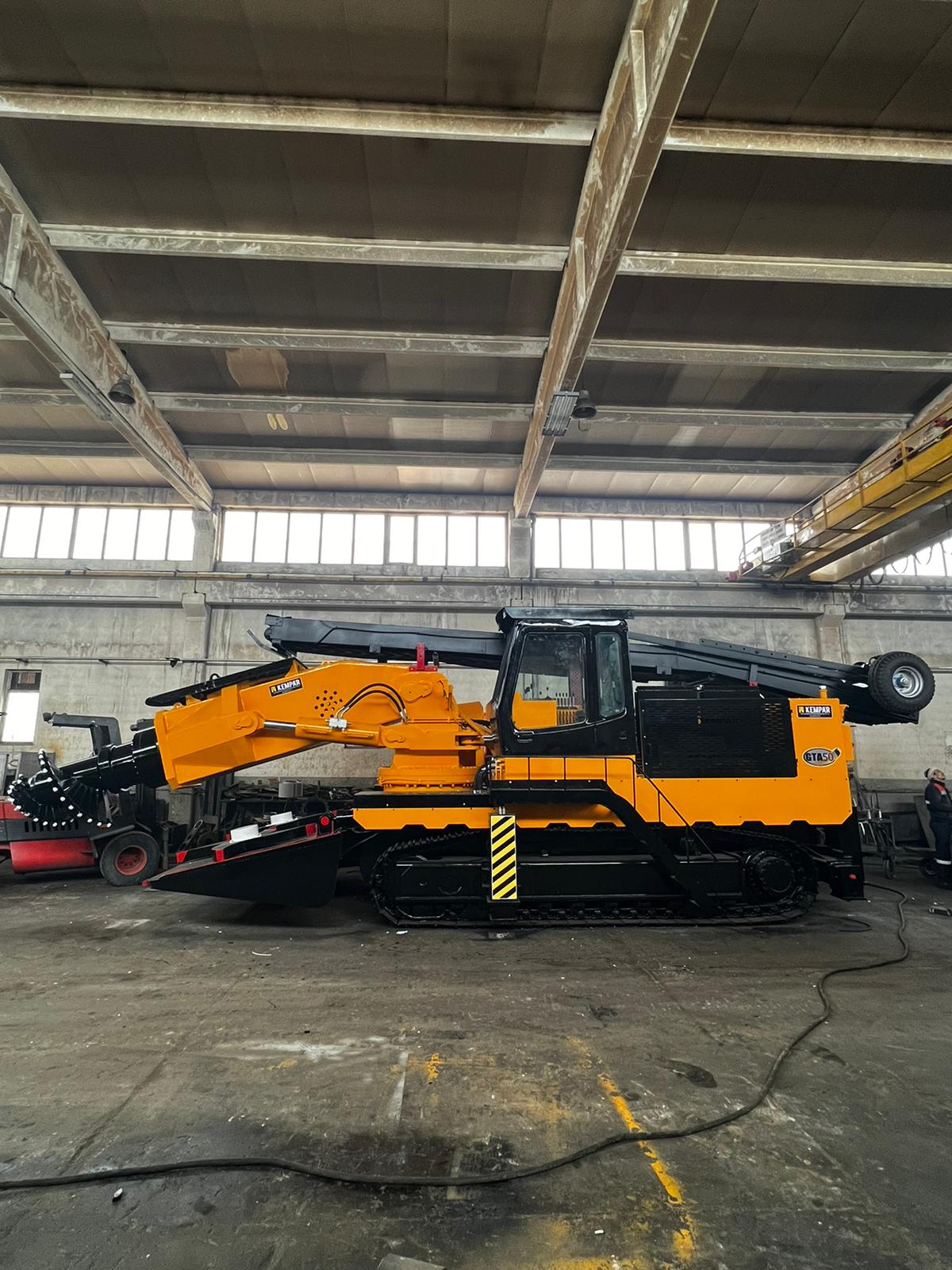

3D Gallery
Multi-angle view
1 / 16
Videos
Field videos
80T Roadheader
Move forward with this machine
Let’s define the right configuration together.
